Choosing the right board size can impact how a deck looks, feels, and functions over time. From aesthetic preferences to structural demands, sizing affects every stage of the project. Many builders and homeowners start with a simple question: how thick is composite decking?
Common Composite Decking Sizes Explained
Choosing the right size impacts performance, ease of installation, and long-term durability — it’s about more than just looks. While some may assume all boards are the same, composite options actually span a wide range of thicknesses and widths. Understanding those dimensions early on helps streamline both material selection and layout.
Most boards fall within a standard range that balances aesthetics and structural integrity. For example, common thicknesses include 0.82, 0.94, and even up to 1.5 inches depending on the application. Widths typically stay in the 5.25 to 5.5-inch range, offering efficient coverage without sacrificing visual appeal.
Understanding Common Decking Thicknesses
The answer depends on both the manufacturer and the intended use. Boards measuring around 0.94 inches are widely used for general installations, combining strength with a clean, low-rise profile. This size supports typical foot traffic while maintaining a sleek appearance.
Some thinner profiles, such as 0.82 inches, are often selected for low-elevation platforms or lighter-use walkways. For areas like steps or edges where more bulk is beneficial, thicker options — as much as 1.5 inches — offer enhanced structural reliability and help define a finished border. Choosing the correct board thickness ensures the surface can withstand expected loads and daily wear without premature failure.
Detailed Specifications of Trex Decking Products
Trex offers a range of board sizes tailored to different project needs, and understanding those differences can help you choose the best fit for your application.
Trex Decking Thickness by Product Line

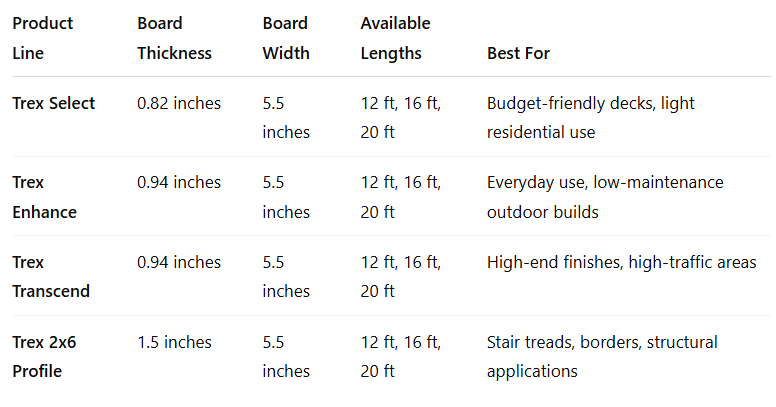

Once general sizing is understood, many builders follow up by asking how thick is Trex composite decking. Trex offers three main board thicknesses depending on product line: 0.82 inches in Select, 0.94 inches in Enhance and Transcend, and 1.5 inches in their 2×6-style boards. Each size fits a specific design and structural role within a build.
Trex Select’s slimmer profile works well for lighter-use spaces or where budget-conscious efficiency is a goal. Enhance and Transcend, with slightly thicker boards, provide more strength for busier walkways or outdoor living spaces. The thickest option, 1.5 inches, is most commonly used in step treads, border frames, or when replacing dimensional lumber in retrofits.
Width Consistency in Trex Products
In addition to thickness, many ask how wide is Trex decking. Most Trex boards measure 5.5 inches in width, offering consistency that simplifies layout planning and material estimation. The standard sizing ensures easy alignment with fasteners, framing, and spacing guidelines.
While specialty widths may be available for certain applications, the majority of projects rely on this 5.5-inch board for core installation areas. That consistency not only makes installation easier but also contributes to visual symmetry across the deck.
Comparing Widths in the Broader Market
Outside of specific product lines, many builders want to know what the typical width of composite decking is across the industry. As with thickness, composite decking widths cluster around 5.25 to 5.5 inches. These dimensions have become industry standards because they offer a strong balance between visual appeal, board coverage, and ease of handling.
In some custom or historic restorations, narrower widths may be selected to recreate specific patterns. On the other end of the spectrum, wider boards are occasionally used to reduce seam lines — though these require extra framing and often increase cost.
Board Thickness and Project Demands
Different project types call for different board profiles, especially when structural needs and design priorities come into play.
Load Requirements and Board Profile
The thickness of Trex decking plays an important role in long-term durability under weight. For areas that support furniture, frequent foot traffic, or structural spans over joists, a thicker board is often the safer choice. Installers should also consider how the selected board integrates with fasteners and framing techniques.
Fastener compatibility is affected by board profile, with thicker materials sometimes requiring longer screws or different clips. A mismatch between thickness and hardware can lead to installation delays or uneven performance over time. Choosing the right thickness from the start avoids delays, minimizes rework, and keeps the entire build on track.
Aesthetic and Functional Integration
Deck thickness also plays a role in how the finished installation looks. A thin board may sit closer to the framing and offer a sleeker, more modern profile. Thicker boards add visual weight and can help distinguish stairs, railings, or borders without adding new materials.
Choosing between these profiles requires a clear understanding of layout, exposure, and usage. The thickness decision isn’t only about load — it also defines the character and feel of the surface.
Sizing Predictability and Material Benefits
Trex decking is known for its uniform sizing, which helps reduce waste and installation surprises. This reliability is especially helpful for mixed installations, where boards may be used for different purposes within the same project. From fascia to stair treads, consistent sizing across product lines simplifies planning.
Even when transitioning between thicknesses — such as using a 1.5-inch border around 0.94-inch field boards — Trex products align without awkward transitions or custom cuts. This precision supports a professional finish and reduces the need for onsite adjustments.
Explore Composite Decking Options at Lumber Plus
If you’re building a new outdoor surface or replacing outdated materials, the right board size makes a big difference. We offer a curated selection of premium composite decking sizes that support better layouts, longer lifespans, and fewer surprises during installation. Contact us today for more information.
